Product Description

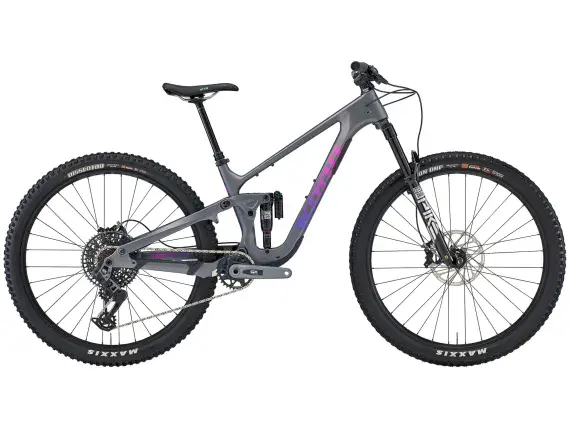

We’re not going to say that the Process 134 CR DL will suddenly make you able to rip turns or jib with anywhere near the style of Caleb Holonko or Eddie Reynolds, but at least you won’t be able to blame the bike if you come up short. And, supposing you DO come up short, the 134 CR DL’s beautifully made carbon fiber frame is built to take it. Flip-chip convenience lets you choose between the stability of full 29” wheels or the flickability or a mullet setup. Ultra-plush RockShox suspension makes molehills out of mountains, SRAM AXS T-Type drivetrain delivers shifting precision and smooth rolling DT Swiss hubs keep the party railing on down the trail. This is the mid-travel quiver killer.

SPECS & GEOMETRY

SPECIFICATIONS

Frame Material	Kona Carbon 134mm Travel
Sizes	S, M, L, XL

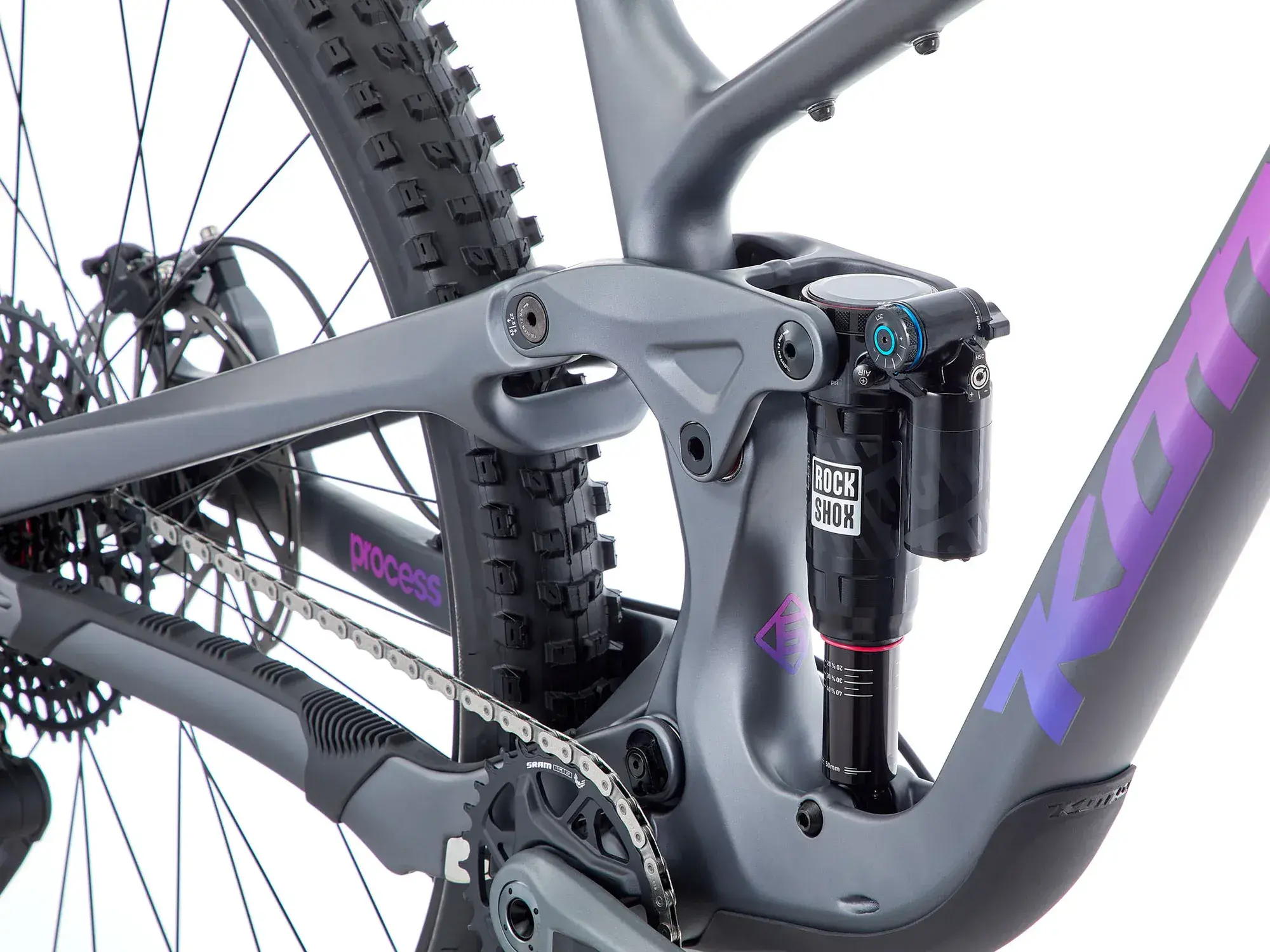

Rear Shock	RockShox Super Deluxe Ultimate RCT Trunnion
Fork	RockShox Pike Ultimate RC2 Charger 3 DebonAir+ w/ButterCups 140mm Tapered 110mm Spacing
Crankarms	SRAM GX Eagle Transmission
Chainrings	32t
B/B	SRAM DUB PF92
Pedals	n/a
Chain	SRAM GX Eagle Transmission
Cassette	SRAM GX Eagle Transmission 10-52t 12spd
Chainguide	n/a
F/D	n/a
R/D	SRAM GX Eagle Transmission
Shifters	SRAM AXS Pod Controller
Brake Calipers	SRAM G2 RSC
Front Brake Rotor	SRAM Centerline 200mm
Rear Brake Rotor	SRAM Centerline 200mm
Brake Levers	SRAM G2 RSC
Headset	FSA Orbit 1.5 E ZS
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	Rock Shox Reverb Stealth w/1x Remote Lever 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	DT Swiss 350 110x15mm
Rear Hub	DT Swiss 350 148x12mm
Spokes	Double Butted Spokes – 14/15/14g
Rims	WTB KOM Team i30 TCS
Front Tire	Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Rear Tire	Maxxis Dissector EXO TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Paint Color	Satin Metallic Charcoal w/ Orchid Fade Decals
Extras	n/a

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	380	380	420	450
2	TT Length	570	599	628	666
3	Reach	430	455	480	515
4	Stack	605	615	625	635
5	Standover	700	700	710	720
6	HT Angle	65.5	65.5	65.5	65.5
7	HT Length	94	105	116	127
8	ST Angle	76.9	76.9	76.7	76.6
9	CS Length	435	435	435	435
10	BB Drop	23	33	33	33
11	BB Height	342	342	342	342
12	Wheelbase	1171	1200	1230	1269
13	Front Center	738	767	797	836
14	Fork Length	551	551	551	551
15	Fork Offset	44	44	44	44

SIZING & SELECTION

MTB FULL SUSPENSION / HARDTAIL / SPLICE

Height/Inches	Height/Metric	Inseam/Inches	Inseam/Metric	MTB/XC Trail/Fat	All Mountain/Enduro	Splice
4'10"-5'1"	147-155cm	24”-27”	61-69cm	XS	XS	Small
5'0"-5'3"	152-160cm	26"-29"	66-74cm	Small	Small	Small
5'2"-5'7"	157-170cm	27"-30"	69-76cm	Small, Medium	Small, Medium	Small, Medium
5'6"-5'10"	168-178cm	29"-31"	74-79cm	Medium	Medium	Medium
5'9"-6'0"	175-183cm	30"-33"	76-84cm	Medium, Large	Medium, Large	Medium, Large
5'11"-6'2"	180-188cm	32"-35"	81-89cm	Large, XL	Large, XL	Large, XL
6'1"-6'5"	185-196cm	33"-36"	84-91cm	Large, XL	Large, XL	Large, XL
