Product Description

Picture sunny gravel roads lined with fields, pastures, fences, and views for days. That’s where this bike is home. The Rove LTD is everything you’d expect from a bike made for going the distance across mixed surfaces. This gorgeous Butted Cromoly frame features a tapered headtube, our Rove Verso Full Carbon flat mount disc fork with the ability to carry a host of gear. You can’t find a bike this pretty with spec this nice at this price. It’s a bike afficionado’s value bike. The Rove LTD is the perfect blend of function and aesthetics and is ready for your next adventure.

Graduated wheel sizing: 48–52cm 650x47c, 54–58cm 700x40c

SPECIFICATIONS

Frame Material	Kona Butted Cromoly
Sizes	48, 50, 52, 54, 56, 58
Rear Shock	n/a
Fork	Kona Libre Full Carbon Flat Mount Disc
Crankarms	Shimano GRX
Chainrings	46x30t Deore
B/B	Shimano Deore 68mm
Pedals	n/a
Chain	KMC X12 12spd
Cassette	Shimano 105 11-36t 12spd
Chainguide	n/a
F/D	Shimano GRX2x (46/30t)
R/D	Shimano GRX 12spd
Shifters	Shimano GRX
Brake Calipers	Shimano GRX
Front Brake Rotor	Shimano CL 160mm
Rear Brake Rotor	Shimano CL 160mm
Brake Levers	Shimano
Headset	FSA No.1/12B/44
Handlebar	Kona Gravel Drop Bar
Stem	Kona Gravel Deluxe
Seatpost	Kona Deluxe Thumb w/Offset 27.2mm
Seat Clamp	Kona Clamp
Grips	Velo Shock-Proof Bar Tape
Saddle	WTB Volt
Front Hub	Formula 100x12mm
Rear Hub	Formula 142x12mm
Spokes	Stainless Black 14g
Rims	WTB KOM Team i23 TCS
Front Tire	Maxxis Rambler EXO TR 700x40c
Rear Tire	Maxxis Rambler EXO TR 700x40c
Paint Color	Gloss Metallic Gentian Blue w/ Dark Orchid Decals

All specifications are subject to change without notice.

GEOMETRY

	Size	48	50	52	54	56	58
1	ST Length	480	500	520	540	560	580
2	TT Length	515	531	546	562	578	598
3	Reach	372	378	383	388	392	400
4	Stack	532	551	570	588	607	626
5	Standover	749	767	789	807	828	847
6	HT Angle	70.5	70.5	71.0	71.0	71.5	71.5
7	HT Length	90	110	130	150	170	190
8	ST Angle	75.0	74.5	74.0	73.5	73.0	72.5
9	CS Length	435	435	435	435	435	435
10	BB Drop	74	74	72	72	70	70
11	BB Height	282	282	284	284	286	286
12	Wheelbase	1016	1029	1036	1048	1054	1068
13	Front Center	592	604	612	623	628	643
14	Fork Length	410	410	410	410	410	410
15	Fork Offset	50	50	50	50	50	50

Bike Geometry

Delivery & Returns

Delivery is free for orders over £50, NOT all items are eligible for free delivery and may include an additional surcharge. Please see terms and conditions for further delivery information. Delivery charges may vary depending on the items you plan to purchase. Specific items including bicycles will incur a minimum £20 delivery charge. Once your product has shipped, it usually takes 2 to 3 business days in UK.

You can return your product up to 14 days after receiving your order. Please make sure that the products are not used or damaged. Terms and conditions apply.

A Minimum restocking fee of £5.00 will apply to returns.

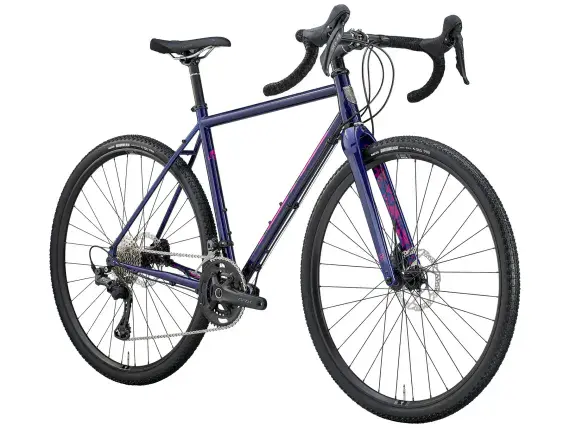

Kona Rove LTD
