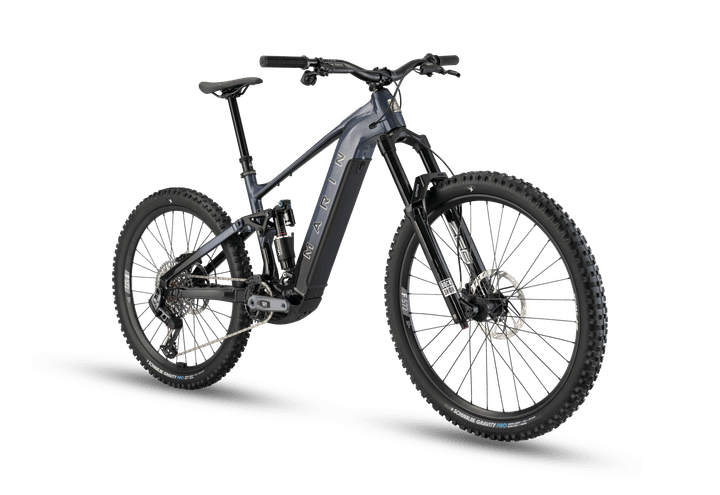

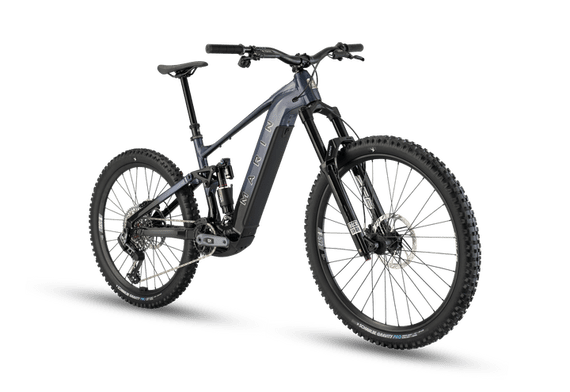

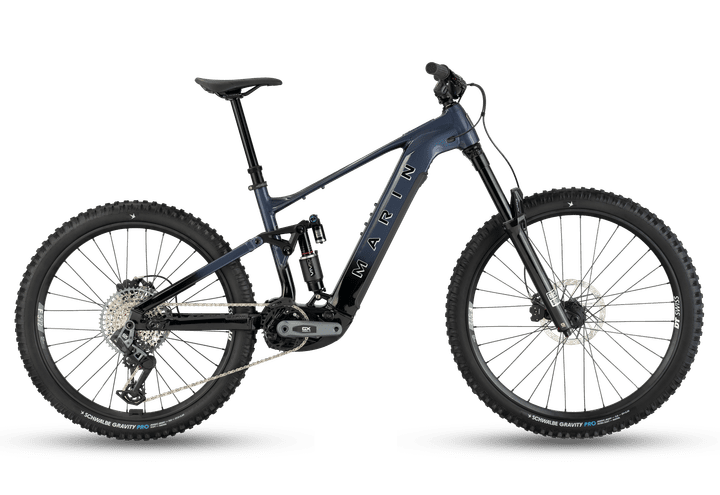

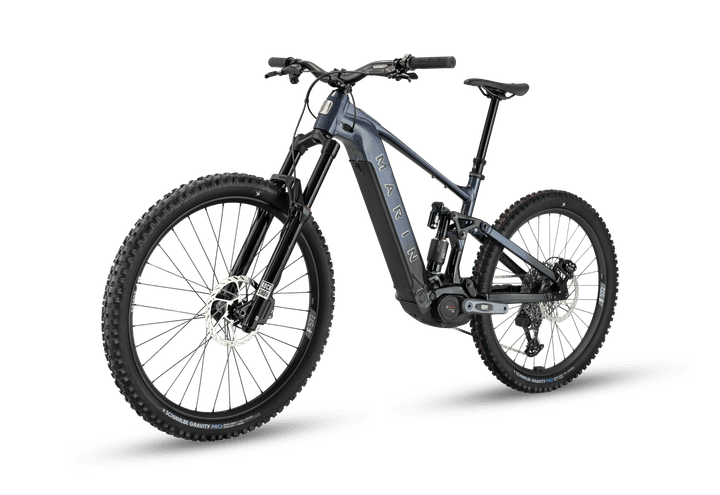

The Alpine Trail E Bosch is our biggest, baddest beast of a bike family, with 170mm of suspension up front, 160mm of MultiTrac 2 travel at the rear and a Bosch CX drive unit at its core, the Alpine Trail E is constructed for riders who challenge themselves with the steepest, most technical terrain, and maximum range for big days in the mountains.
App
Bosch eBike Flow App
Range
115-55 miles/25-90km
Display
Bosch Kiox 400 Top Tube Display
Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Battery
PT800 Horizontal
Frame

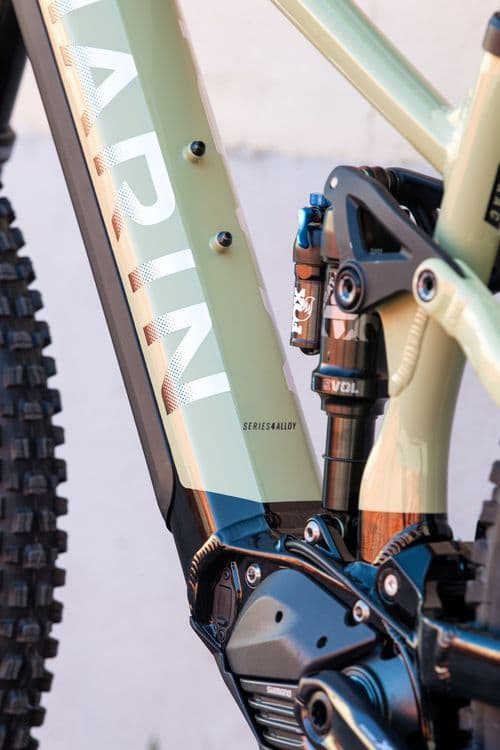

All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension
RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
Rear Suspension
RockShox Vivid Air Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune
Rim
DT Swiss M552, 29mm Inner, 32H
Hub Rear
DT Swiss 370 Hybrid, 148x12mm, 6-Bolt Disc, Mircro Spline Driver, 32H
Hub Front
DT Swiss 370 Hybrid, 110x15mm, 6-Bolt Disc, 32H
Spokes
DT Swiss Champion Spokes, Pro Lock Nipples
Tires
Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
Chainguide
e*thirteen e*Spec Chainguide
Derailleur Rear
SRAM GX AXS T-Type
Shift Lever
SRAM AXS Pod Infinity Mount
Crankset
Sram GX, 34T, 150mm
Chain
SRAM GX T-Type
Cassette
SRAM CS-XS-1275 T-Type, 10-52T
Brakes Front
SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brakes Rear
SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brake Levers
SRAM Maven Silver

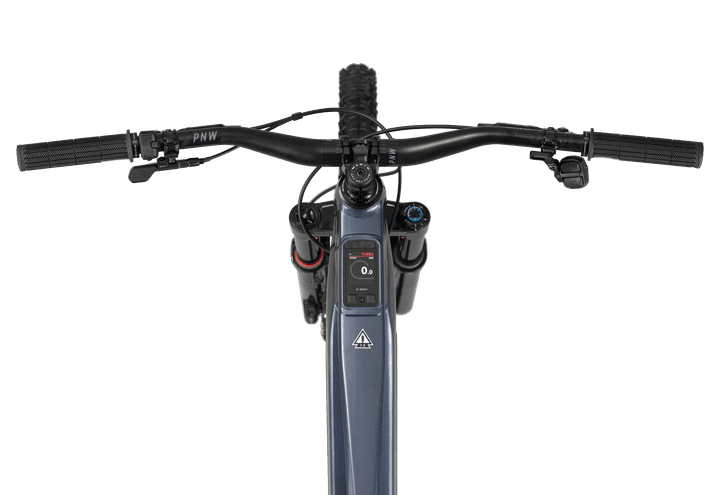

Handlebar
PNW Range Handlebar, 38mm Rise, 35mm Clamp, 800mm Width
Stem
All New Marin CNC, 35mm Length, 35mm Bar Bore
Grips
Marin Grizzly Lock-On
Headset
FSA Custom Headset, Adjustable HTA Design
Seatpost
PNW Loam Post with Range Lever, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
Saddle
WTB Devo Pick-Up
