Product Description

£4,699.00^*
Suspension: RockShox Lyrik Select+/RockShox Super Deluxe Select+
Wheel Size : 29", 27.5"
Frame: Aluminum
Size Range: S, M, L, XL

Specifications, pricing, and availability are subject to change without notice.

SERIES 3 ALUMINUMIM FRAME

Rift Zone alloy models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing with new braze-in ports, giving the rider a high feature and high-performing upgrade-worthy platform.

MULTITRAC SUSPENSION TECHNOLOGY

MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks. 130mm rear travel on all Rift Zone models.

MODERN TRAIL GEOMETRY

Trail geometry with 430mm chainstays, low bottom bracket, long top tube, and a slack 65.5° head angle make for a playful yet confidence-inspiring bike.

INTERNAL ROUTING

Rift Zone Alloy models sport full internal cable/hose routing in the front triangle, and all-new brazed-in cable ports, providing a clean and rattle free cable set up.

CHAINSTAY/SEATSTAY PROTECTORS & UDH ON ALLOY MODELS

Rift Zone models have enhanced chainstay and seat stay protectors for a quiet ride, and utilize SRAM's Universal Derailleur Hanger (UDH) to help future-proof the frame as well as allow for T-type drivetrains.

ENHANCED CHAINSTAY/SEATSTAY PROTECTION

Rift Zone models have prominent chainstay and seat stay protectors for a quiet ride that also protects the paint finish.

Suspension Setup

REAR SHOCK SETUP

Recommended Sag = 30%/19.5mm

Step 1: Set correct pressure in rear shock.

Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).

Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.

Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.

Step 5: Adjust rebound setting to ensure proper control.

FORK SETUP

Marin recommends that all bikes front and rear suspension feel balanced

Step 1: After rear sag is set follow the recommended pressure from the fork manufacturer.

Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.

Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.

RockShox Super Deluxe Select+

***Rider weight and shock setup***
*LBS*	KG	*PSI*
*120*	54	*113*
*130*	59	*121*
*140*	64	*130*
*150*	68	*140*
*160*	73	*151*
*170*	77	*163*
*180*	82	*176*
*190*	86	*189*
*200*	91	*202*
*210*	95	*216*
*220*	*100*	*230*
*230*	*104*	*244*
*240*	*109*	*258*
*250*	*113*	*273*
*260*	*118*	*288*
*270*	*122*	*303*

Specifications

Jump to…

Gallery Specifications Geometry Technology Suspension Setup Service

Find a Dealer

Manufacturer’s suggested retail price may not include additional shipping or preparation charges. Please contact your local Marin dealer for a quote.

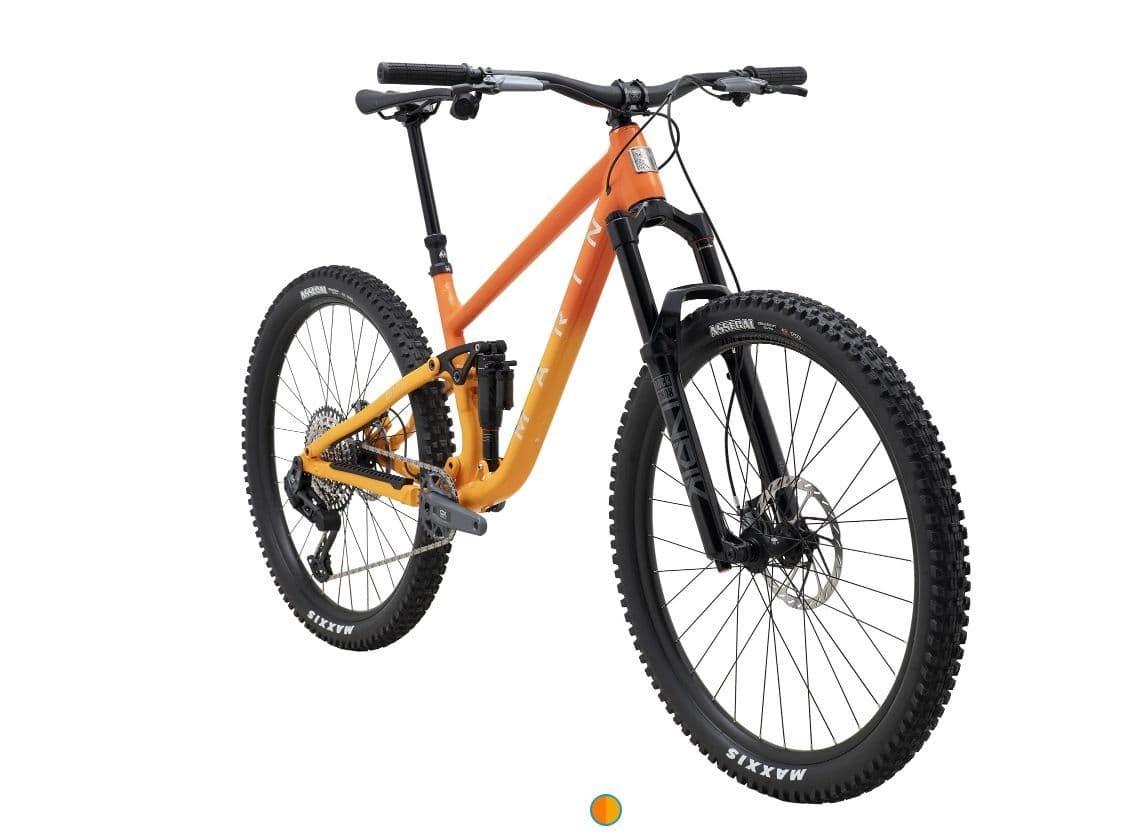

Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.

The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

XR means Extra Rad. The Marin Rift Zone XR AXS is our hard-charging special edition, made for riders that want the raddest, baddest Rifty in the range. RockShox Lyrik Select+ fork and Super Deluxe Select+ shock, Maxxis Assegai tires, loads of SRAM GX Eagle, SRAM Code 4-piston brakes, loads of Marin fine details. And, the cherry on top, we've added SRAM GX Eagle AXS wireless shifting to create our highest-spec, highest-tech Rift Zone alloy model ever.
