| Frame |
All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs |
| Front Suspension |
Fox 34SL Performance, 130mm Travel, Grip 3-Pos Damper, Kabolt SL Axle 110x15mm, Tapered Steerer Tube, 44mm Offset |
| Rear Suspension |
Fox Float SL Performance, 3-Pos Compression Adjust, EVOL LV Air Spring, 190x45mm, 30x8m Hardware, 0.6 VC, CL+ RF CMF Tune |
| Rims |
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 28H, Tubeless Compatible |
| Hub, Rear |
Novatech, 148x12, 6-Bolt, HG Driver, 28H |
| Hub, Front |
Novatech, 110x15mm, 6-Bolt Disc, 28h |
| Tires |
Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready |
| Derailleur, Rear |
Shimano Deore, 12-Speed, SGS |
| Shift Lever |
Shimano Deore, 12-Speed |
| Crankset |
Race Face Affect, 32T Steel Ring, 24mm Spindle, 170mm, 55.5mm CL |
| Chain |
KMC X-12 Silver and Black |
| Brake, Front |
Shimano Deore M6120, Hydraulic Disc, 180mm CL Rotor |
| Brake, Rear |
Shimano Deore M6120, Hydraulic Disc, 180mm CL Rotor |
| Brake Levers |
Shimano Deore M6120, Hydraulic Disc |

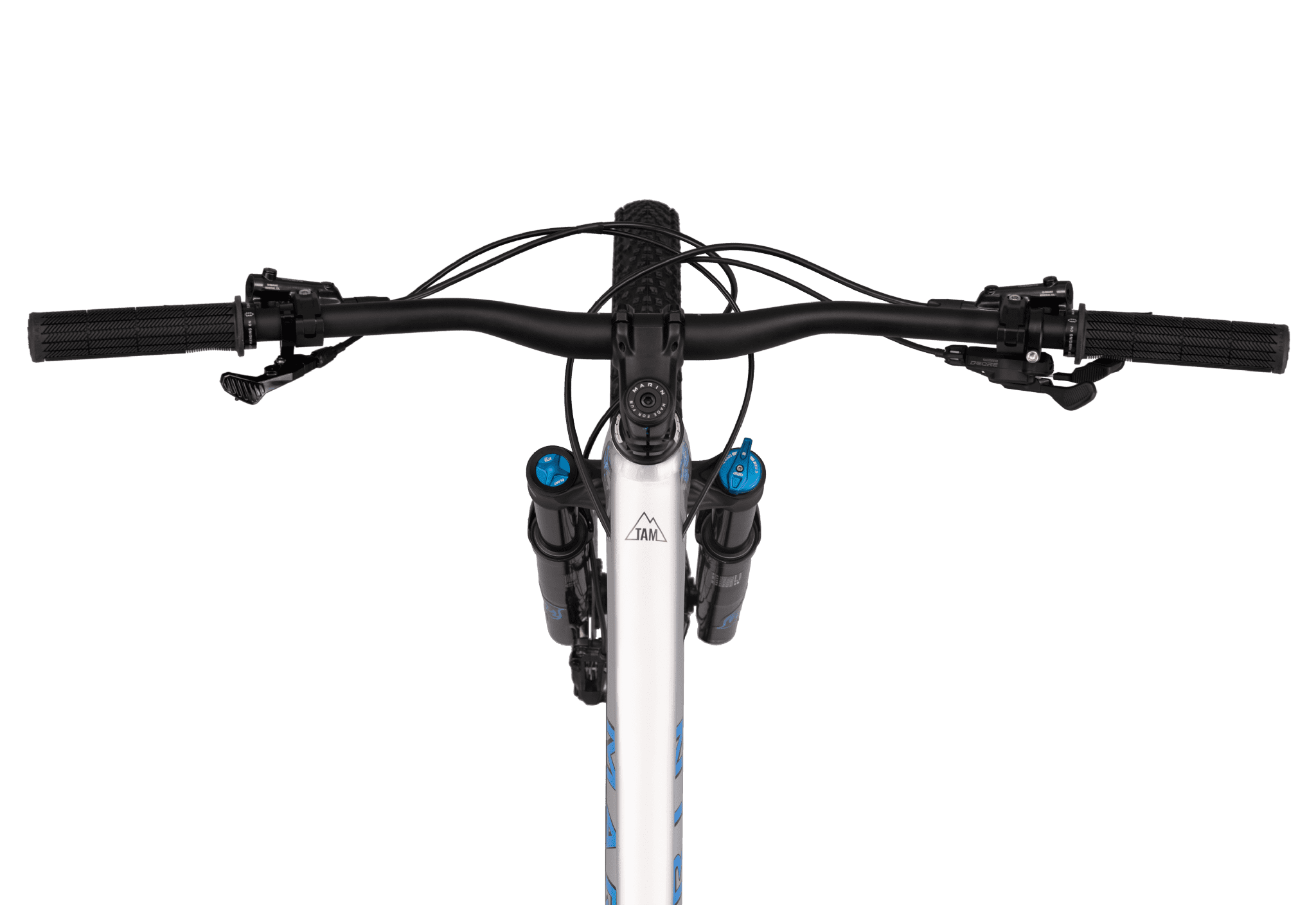

| Handlebar |
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 30mm Rise, 5º Up, 9º Back |
| Stem |
Marin 3D Forged Alloy, 55mm |
| Grip |
Marin Grizzly Lock-On |
| Headset |
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost |
Tranz-X YSI60QL Dropper Post, Adjustable Travel, 30.9mm Diameter, S = 150MM / M = 170MM / L-XL = 200MM |
| Saddle |
Marin Speed Concept |
