| Frame |
All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs |
| Front Suspension |
Fox 34SL Performance Elite, 130mm Travel, Grip X Damper, Kabolt SL Axle 110x15mm, Tapered Steerer Tube, 44mm Offset |
| Rear Suspension |
Fox Float SL Performance Elite, 3-Pos Compresion Adjust, EVOL LV Air Spring, 190x45mm, 30x8m Hardware, 0.6 VC, CL+ RF CMF Tune |
| Rims |
WTB KOM Light i30, 28H |
| Hub, Rear |
WTB X7, 148x12, Straight Pull, 28H, 6-Bolt Disc , MicroSpline FH |
| Hub, Front |
WTB X7, 110x15, Straight Pull, 28H, 6-Bolt Disc |
| Tires |
Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready |
| Derailleur, Rear |
Shimano Deore Di2, 12-Speed, SGS |
| Shift Lever |
Shimano Deore Di2, 12-Speed |
| Crankset |
Race Face Turbine, 32T Alloy Ring, 30mm Spindle, 170mm, 55.5mm CL |
| Chain |
KMC X-12 Silver and Black |
| Brake, Front |
SRAM Motiv Silver, 4-Piston Hydraulic Disc, HSC 180mm Rotor |
| Brake, Rear |
SRAM Motiv Silver, 4-Piston Hydraulic Disc, HSC 180mm Rotor |
| Brake Levers |
SRAM Motiv Silver |

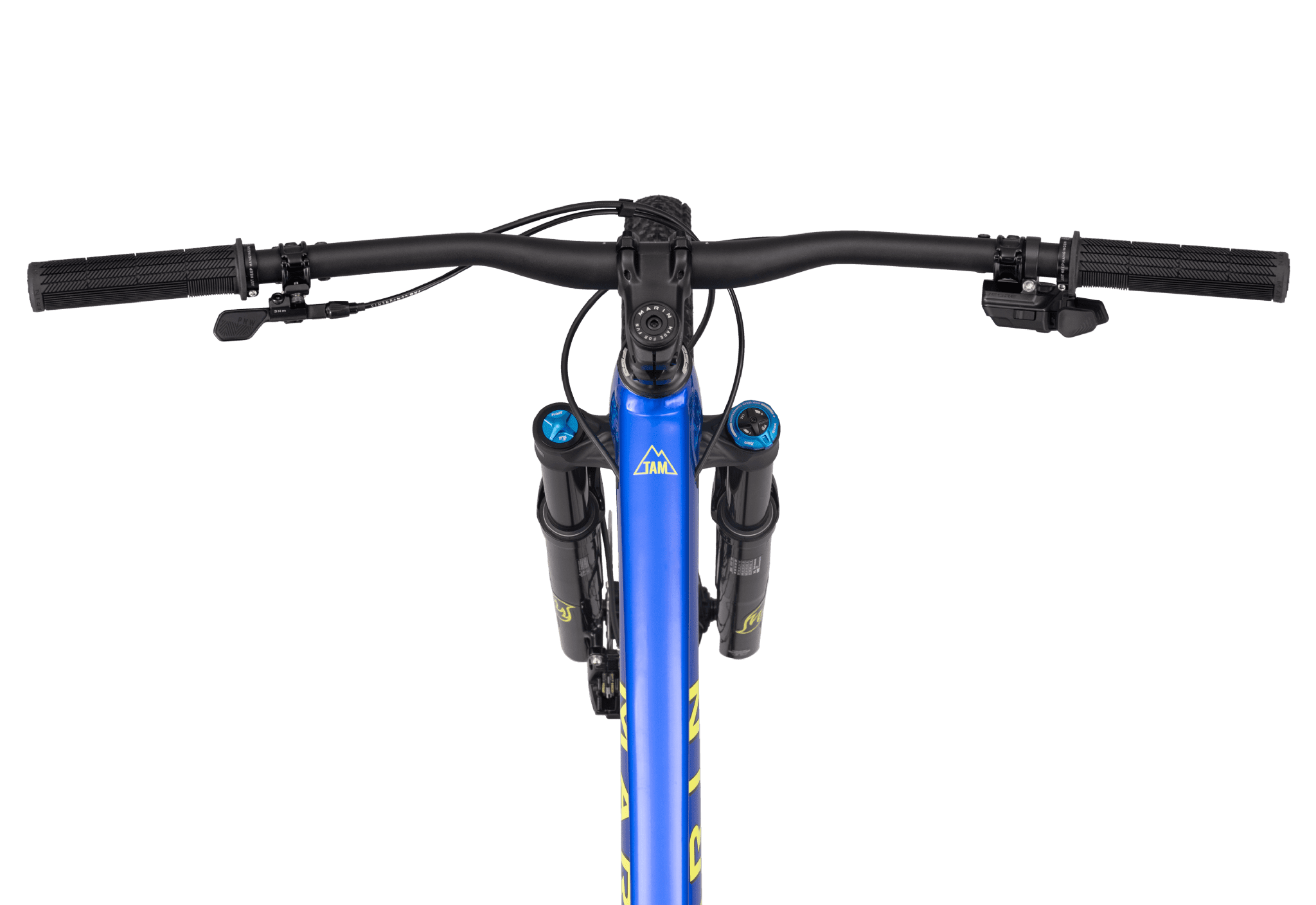

| Handlebar |
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 30mm Rise, 5º Up, 9º Back |
| Stem |
Marin 3D Forged Alloy, 55mm |
| Grip |
Marin Grizzly Lock-On |
| Headset |
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost |
PNW Loam Dropper Post Gen 2+, Range Lever MMX Clamp, Adjustable Travel, 30.9mm Diameter, S = 150MM / M = 170MM / L-XL = 200MM |
| Saddle |
Marin Speed Concept |
