    THE LOAM POST

    We made this post to honor your most adventurous days on the trail. From the quadzilla climbs to the serpentine descents, the Loam Dropper capitalizes on PNW’s best-in-class reliability in our shortest, lightest and most customizable package yet. The new Loam also features swappable silicone bands that hug the midcap, giving you the opportunity to match your bike (or mood).


    Upgraded Travel Plans

    By shortening the overall post and adding 30mm of Tool-Less Travel Adjust we’ve guaranteed you more drop across a wider variety of frame designs, sizes and body types. This means more distraction free descents with less awkward high fives from your saddle when the trail gets rowdy.


    Under Pressure

    Slow and controlled or swift and poppy? Dial in your dropper’s return rate with personalized pressure, courtesy of the Loam Post’s adjustable air cartridge.

    3 Year Warranty

    We've always got
    your back

    Fast Shipping Options

    Get your parts for the
    weekend ride

    Unparalleled Service

    Seriously, we're here
    for you

    Pacific NW Approved

    All Season reliability, tested in the mountains


    make it yours

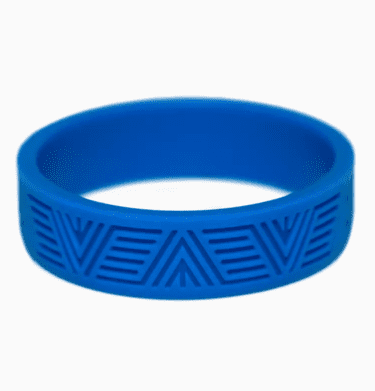

    The Loam Post features a machined channel on the mid-cap that's home to a swappable silicone band. Each post comes with our standard Blackout Black band but we offer our full range of colors to match your bike, PNW cockpit or personal chakra aura.

    How Does Travel Adjust work?

    Our travel adjust system allows for a total of 30mm travel reduction in 5mm increments. If you were riding that line between travel sizes you can now fine-tune the perfect fit by following the easy directions below:

    1. Begin by lowering your dropper at or below the desired travel length (just make sure it’s not fully extended!)
    2. Unthread the midcap with your hand and slide it up to reveal the white DU Bushing.
    3. You’ll see negative numbers with corresponding notches machined into the post (each # represents decreasing travel.
    4. Slide the DU bushing up and rotate it to align the black arrow with the amount of travel you would like to reduce, then seat the arrow into the machined groove. (Make sure it’s fit securely into these notches!)
    5. After pushing the DU Bushing back down, lower the midcap and hand tighten (no need to go overboard!) and ride off into the sunset with the perfect travel for you.

    Specs: LOAM POST

    Measurements

    A
    Travel

    B
    Total Length

    C
    Seat Collar to Center of Rails

    D
    Full Insertion Length

    E
    Min. Insertion Length

    125

    385

    170

    215

    90

    150

    440

    200

    240

    90

    170

    480

    220

    260

    120

    200

    540

    250

    290

    145

    Cartridge style

    Adjustable Air Cartridge

    Routing Method

    Internal

    Diameters

    30.9mm, 31.6mm, 34.9mm

    Travel

    125mm, 150mm, 170mm, 200mm

    Weight

    125mm
    456g

    150mm
    504g

    170mm
    532g

    200mm
    576g

    Seatpost Material

    7075 Alloy

    Lever Compatibility

    Compatible with all PNW levers and most cable actuated levers from other brands.

    Manuals

    Droppers

    Loam

    FAQ

    What’s the difference between the Rainier Gen 3 and the Loam?

    There are a few differences between the Rainier Gen 3 Dropper post and the Loam Dropper Post. The Loam Post has a shorter actuator and more machining on the stanchion both of which work to create a shorter overall post. This allows for more travel in a larger variety of bike frames. Another difference is the cartridge. With the Rainier, you get a sealed “set-it-and-forget-it” cartridge. The Loam has the advantage of an adjustable air cartridge, where you can customize your return rate.

    Is this post compatible with my bike?

    Start by checking if your bike is externally or internally routed. The Loam is only compatible for internally routed frames. Second check the seat tube diameter. Want help finding the right dropper for your bike? Click here >>>

    What is the tool less travel adjust system?

    This system allows you the maximum drop for your post size. We accomplish this through a notched bushing under the midcap collar so you can dial in a more tailored fit.

    How often do I need to service the post?

    As riding frequency and conditions vary, we do not have a strict service interval. Instead, we recommend servicing your post if it starts to feel sticky/slows down. When it does come down to service it is a quick and easy, at home process. Check out our service video here

    How do I set up the adjustable air cartridge?

    These shiny new dropper features an adjustable alloy cartridge that requires a high pressure shock pump to setup. They come under inflated during shipping to preserve the cartridge. To adjust the pressure do the following:

    1. Before installing your saddle remove the clamp assembly and hardware.
    2. Remove the rubber grommet covering the valve.
    3. Manually actuate the post so it is in the fully extended position.
    4. Thread the shock pump on the valve and inflate to 270-300psi for optimal performance.
    5. Remove the pump and you are now ready to complete the instalI.
