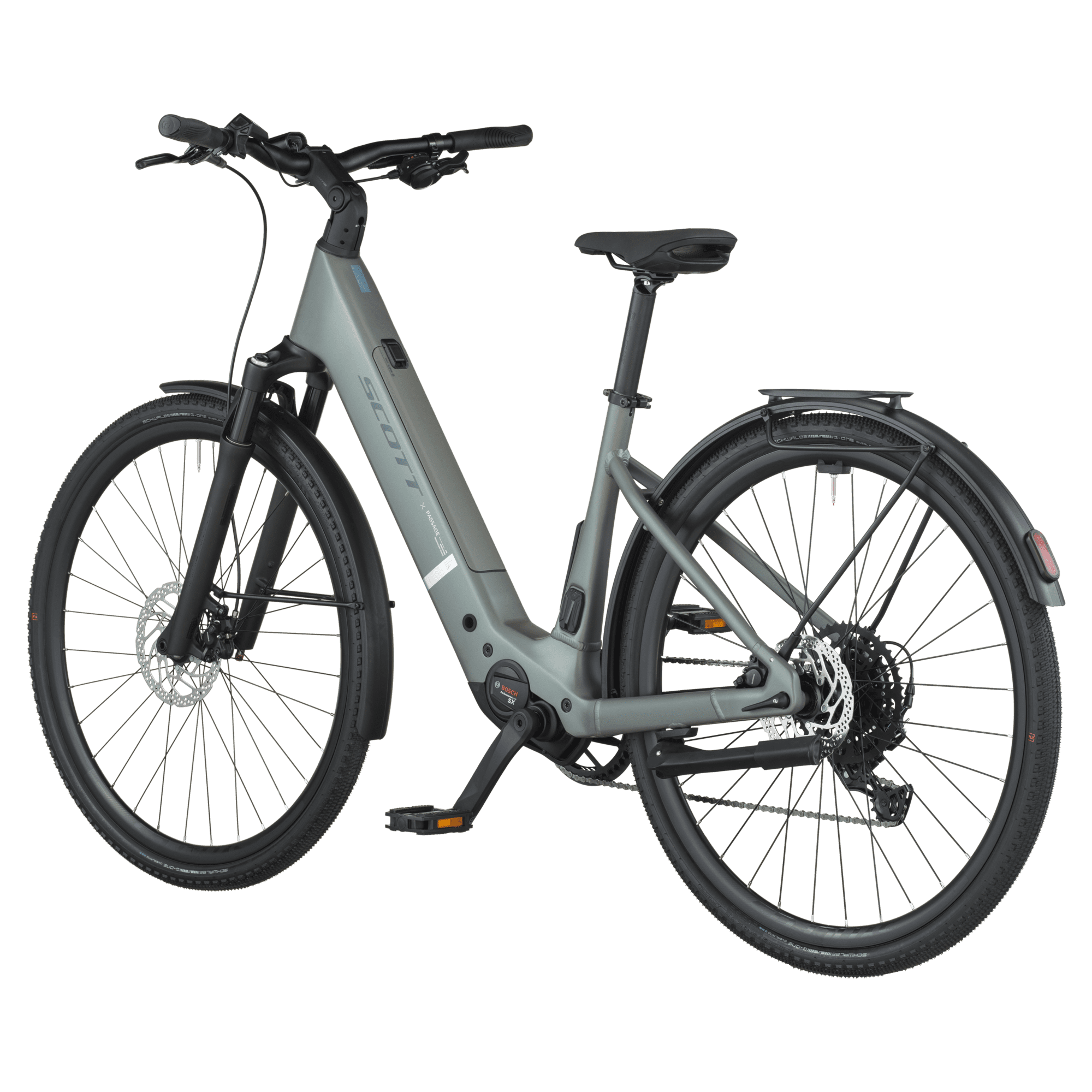

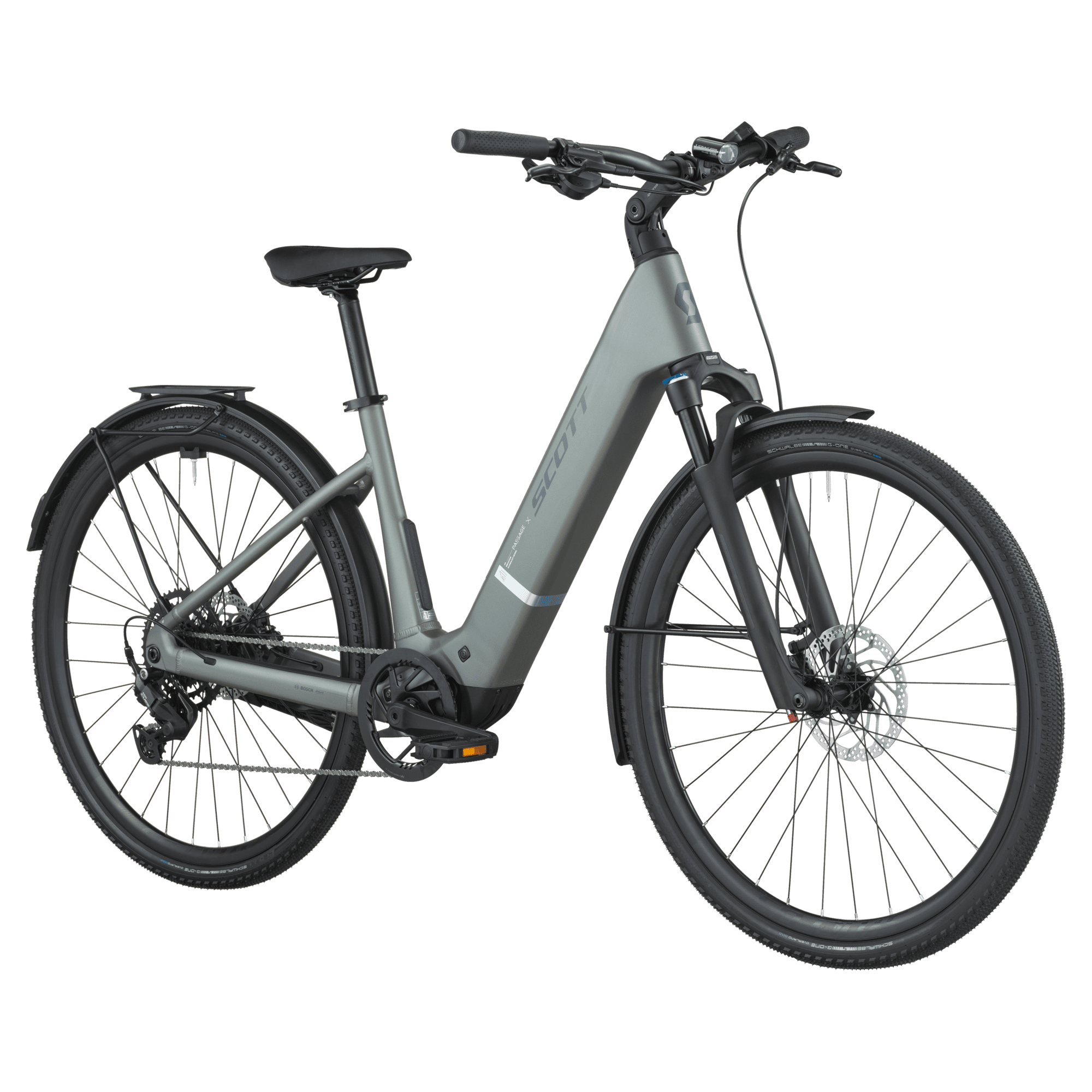

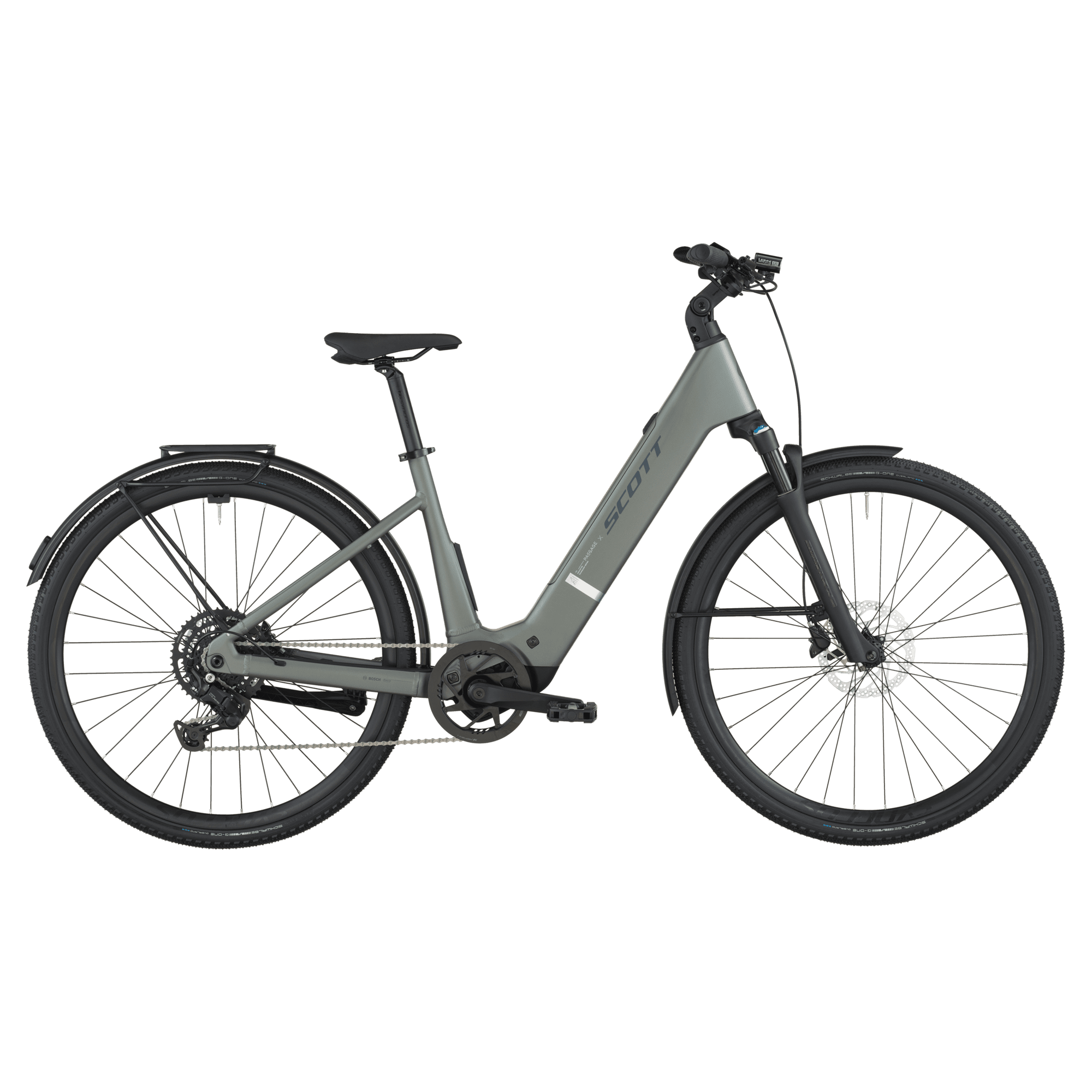

SCOTT Passage 20 Wave Bike

Model : 425618

Key Features

• Passage eRIDE Alloy Frame
• Bosch SX, CT400 SmartSystem Engine System
• SR Suntour 75mm Fork
• Shimano Cues 9 Speed Drivetrain
• Shimano Disc Brakes
• Lezyne front light / Syncros integrated rear lights
• Racktime Micro rear rack, Snap it 2.0 compatible, 8Kg

Passage 20 Wave is a full step-through E-Bike designed to take your urban riding to the next level. The open design makes it easy to mount and dismount the bike, whether on a commute or enjoying a tour around town.
The center of it all is the lightweight yet strong Bosch SX motor unit and tidy 400Wh battery. On the ride, the combo provides effortless performance on the pedals, accelerating smoothly over hills, delivering confident torque from a stop, and supplying the range to power you to your destination on the other side of town.

Handling is also light and easy, feeling more like a traditional bike than cumbersome and sluggish compared to a heavier urban E-Bike. The motor unit is just 2kg, low in the frame, and compact enough to provide confidence when navigating and a more natural pedaling style thanks to its favorable Q-factor.

We equipped this Passage 20 with a 75mm suspension fork to soften rough pavement on your routes and 45mm tires to add stability and durability no matter what comes your way. Its 9-speed drivetrain gives you the gearing range to ride around town like a pro, and the rear rack sets you up to stow the day’s essentials.


Please note that bike specifications are subject to change without prior notice.
condition of usage 2

• Frame

  Alloy S-L=29", 6061 Alloy custom butted tubing
  Top extraction battery

• Travel

  75mm

• Fork

  SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Steel Steerer, 75mm Travel

• Drive Unit

  Bosch Performance Line SX (BDU314Y)
  EU: 25kmh

• Battery

  Compact Tube 400Wh

• Display

  Bosch Purion 200

• Charger

  2A Charger

• Rear Derailleur

  Shimano CUES RDU4000GS 9 Speed

• Shifters

  Shimano CUES SLU4009RC, 9 Speed

• Crankset

  FSA CK-220 170mm

• Chainguide

  Syncros

• Chainring

  FSA 38T

• Chain

  Shimano LG500

• Cassette

  Shimano LG300, 11-46T

• Brakes

  Shimano BR-MT200 Disc

• Rotor

  Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

• Handlebar

  Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount

• Seatpost

  Syncros M3.0, 31.6

• Seat

  Syncros Capilano

• Headset

  Acros, 1.5"- 1.5"
  semi integ. OD 50/61mm, ID 44/55mm

• Hub (Front)

  Shimano HBTC50015B CL, 15x100mm

• Hub (Rear)

  Shimano FHTC500HMB CL, 12x142mm

• Spokes

  Black Spokes

• Rims

  Syncros X15 Disc

• Front Tire

  Schwalbe G-One Overland 365 Performance, 700x45C

• Rear Tire

  Schwalbe G-One Overland 365 Performance, 700x45C

• Lights

  Lezyne Fusion E550SM front light
  Rear Supernova TL3Z

• Rack

  Racktime Micro Rack SnapIt 2.0 8KG

• Pedals

  Marwi SP-827

• Extras

  Alumee alloy profile Fender
  Passage Kickstand

• Approx weight in KG

  22.2

• Approx weight in LBS

  48.94

• Max. System Weight

  130kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
