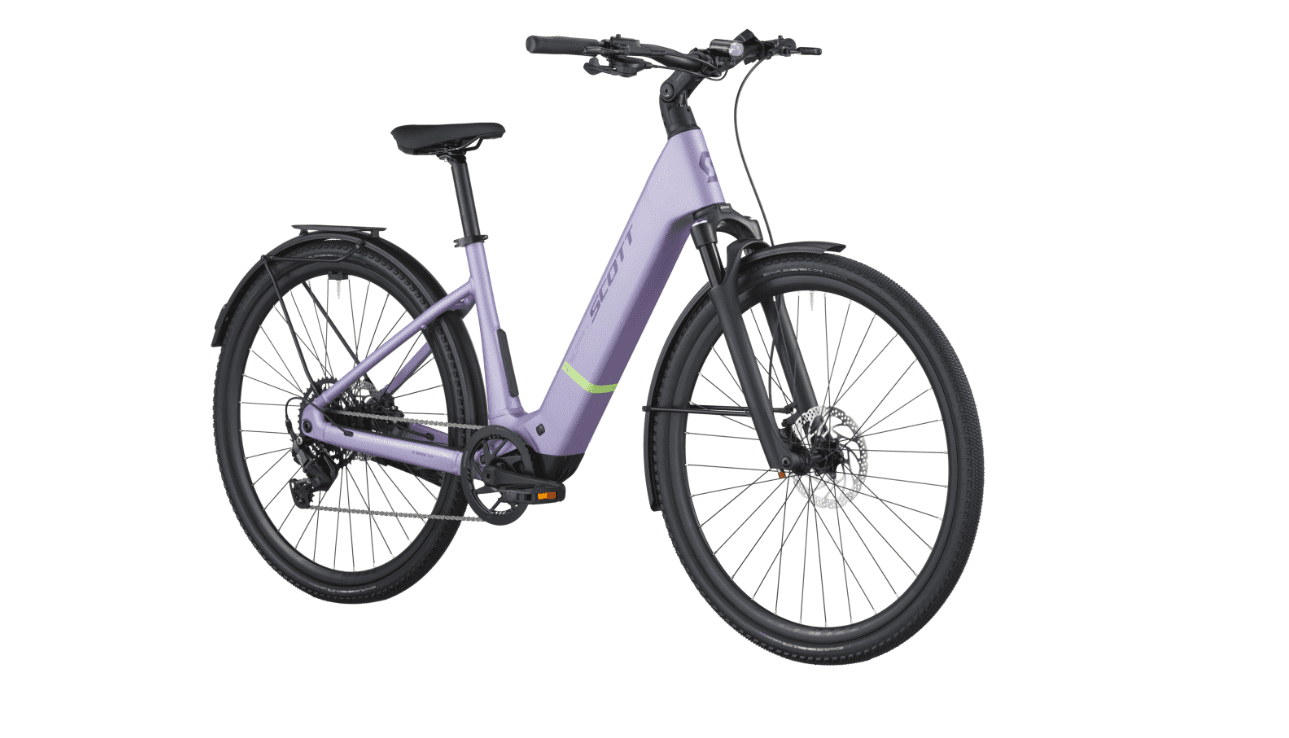

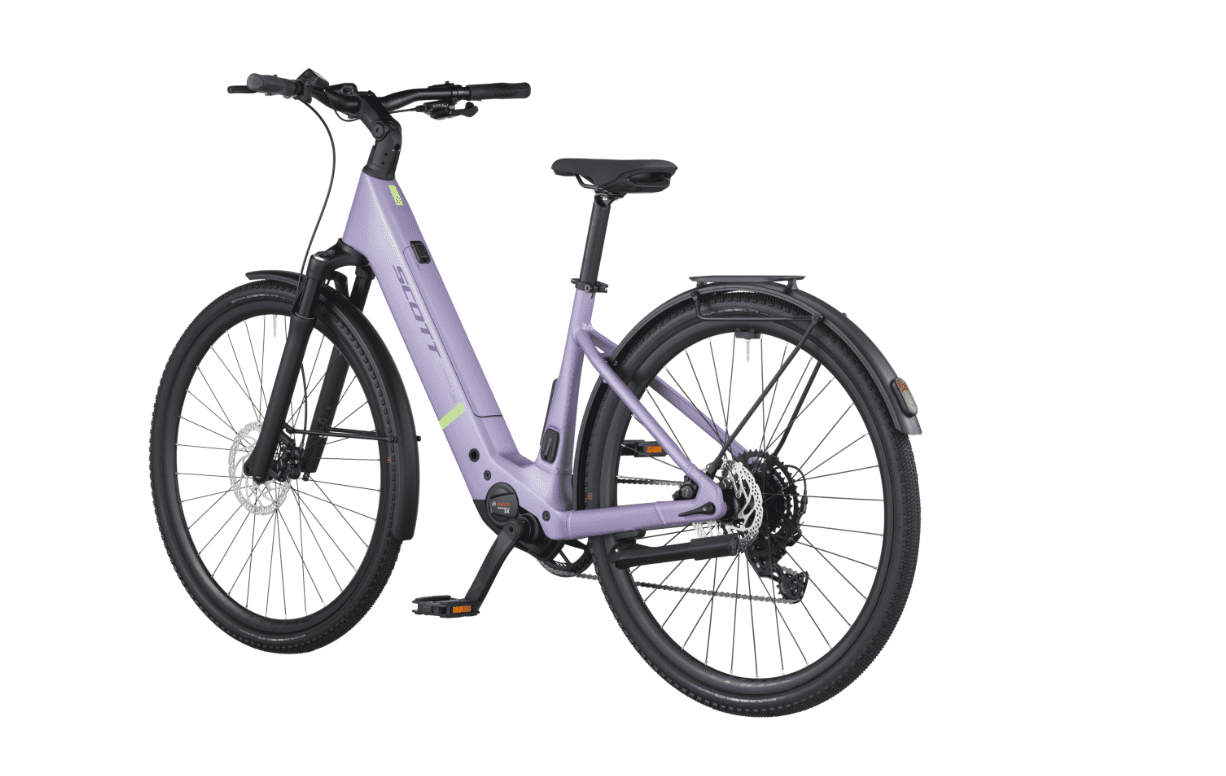

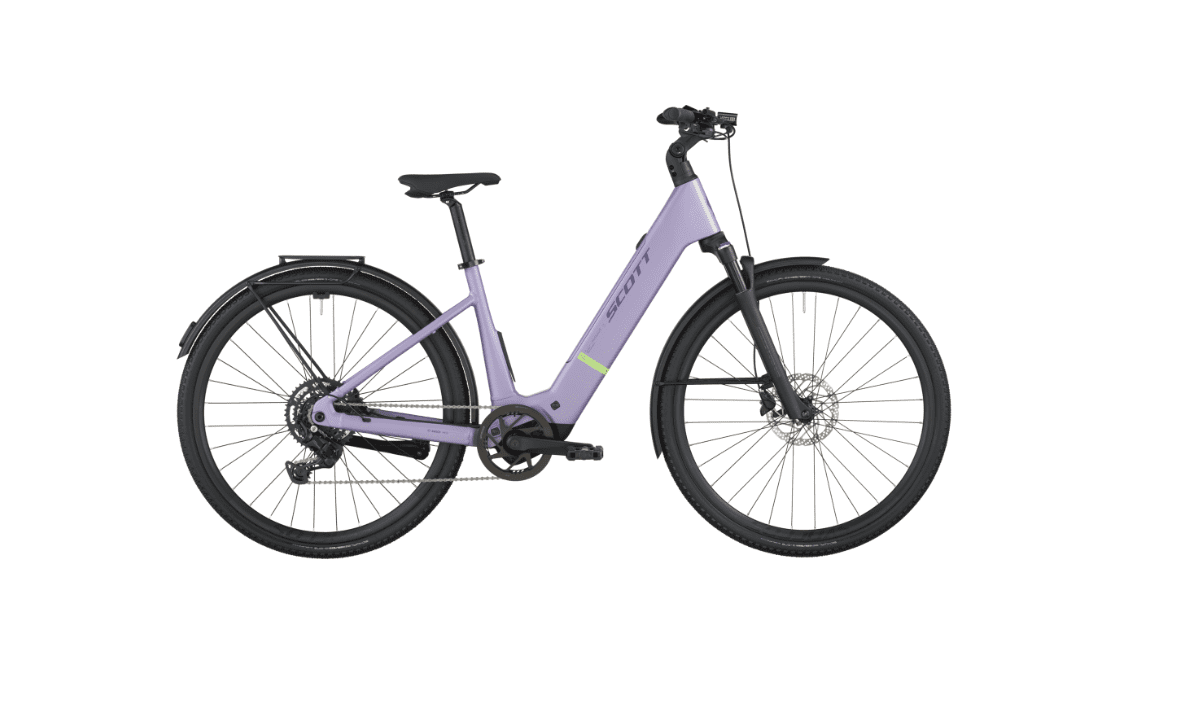

The Passage 20 Wave is built to make everyday riding easy, whether you're popping into town, heading to work, or exploring the quieter lanes around the Forest of Dean.

Its step-through frame makes getting on and off simple, which is especially handy when you're stopping frequently or carrying shopping and gear. Power comes from the lightweight Bosch SX motor and integrated 400Wh battery, giving you smooth assistance when tackling the rolling hills and winding roads that are common across the Forest of Dean and surrounding areas.

Unlike some heavier e-bikes, the Passage 20 feels light, responsive, and easy to handle. The compact motor sits low in the frame, helping the bike feel stable and natural whether you're riding through villages, along cycle paths, or taking the scenic route through the forest.

For extra comfort, it comes fitted with a 75mm suspension fork to take the sting out of rougher roads and uneven surfaces, while the wide 45mm tyres add confidence and grip in all conditions. The 9-speed gears give you plenty of range for climbs and faster stretches, and the rear rack is perfect for carrying everything from work essentials to supplies for a day out exploring.

Whether you're commuting, running errands, or enjoying a leisurely ride through the Forest of Dean, the Passage 20 Wave offers a comfortable, capable, and enjoyable way to get around.

Please note that bike specifications are subject to change without prior notice.

• Frame

  Alloy S-L=29", 6061 Alloy custom butted tubing
  Top extraction battery

• Travel

  75mm

• Fork

  SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Steel Steerer, 75mm Travel

• Drive Unit

  Bosch Performance Line SX (BDU314Y)
  EU: 25kmh

• Battery

  Compact Tube 400Wh

• Display

  Bosch Purion 200

• Charger

  2A Charger

• Rear Derailleur

  Shimano CUES RDU4000GS 9 Speed

• Shifters

  Shimano CUES SLU4009RC, 9 Speed

• Crankset

  FSA CK-220 170mm

• Chainguide

  Syncros

• Chainring

  FSA 38T

• Chain

  Shimano LG500

• Cassette

  Shimano LG300, 11-46T

• Brakes

  Shimano BR-MT200 Disc

• Rotor

  Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

• Handlebar

  Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount

• Seatpost

  Syncros M3.0, 31.6

• Seat

  Syncros Capilano

• Headset

  Acros, 1.5"- 1.5"
  semi integ. OD 50/61mm, ID 44/55mm

• Hub (Front)

  Shimano HBTC50015B CL, 15x100mm

• Hub (Rear)

  Shimano FHTC500HMB CL, 12x142mm

• Spokes

  Black Spokes

• Rims

  Syncros X15 Disc

• Front Tire

  Schwalbe G-One Overland 365 Performance, 700x45C

• Rear Tire

  Schwalbe G-One Overland 365 Performance, 700x45C

• Lights

  Lezyne Fusion E550SM front light
  Rear Supernova TL3Z

• Rack

  Racktime Micro Rack SnapIt 2.0 8KG

• Pedals

  Marwi SP-827

• Extras

  Alumee alloy profile Fender
  Passage Kickstand

• Approx weight in KG

  22.2

• Approx weight in LBS

  48.94

• Max. System Weight

  130kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
