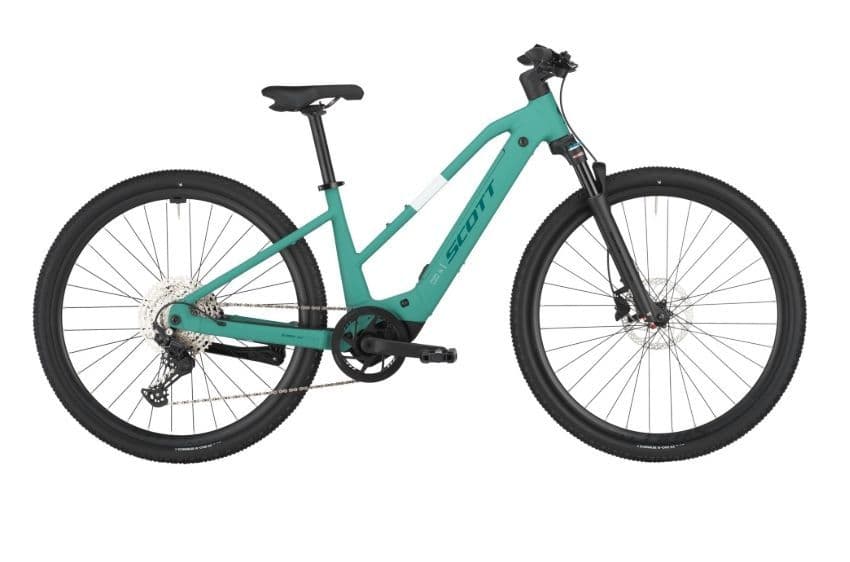

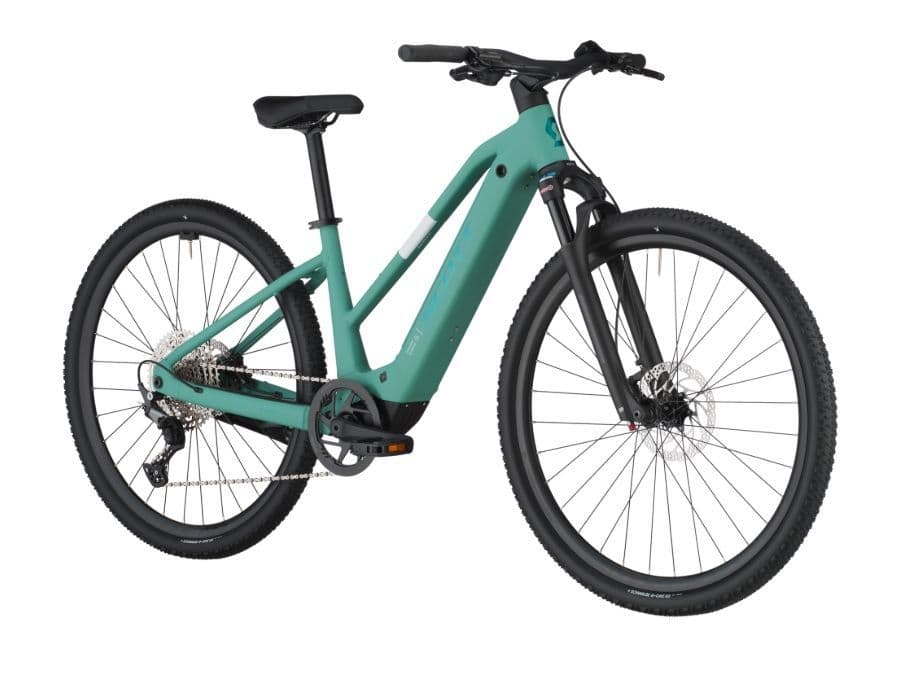

Scott Passage Slope 20 Aveturine Green
Scott Passage Slope 20 Aveturine Green
Scott Passage Slope 20 Aveturine Green
Scott Passage Slope 20 Aveturine Green

Product Description

  • Cycling everyday is a total breeze.
    Passage eRIDE is the ALL-NEW SCOTT electric urban bike designed for easy, hassle-free riding in the city.
    Equipped with the lightweight Bosch SX motor and 400Wh battery it gives you a feeling of weightlessness as you ride, while giving you the power to go further. Your Passage through the city just became easier.

    Please note that bike specifications are subject to change without prior notice


    condition of usage 2

    Example Trekking bike, travel bike
    Please check the detail for more information

  • Frame

    Alloy S-L=29" / 6061 Alloy custom butted tubing
    Top extraction battery

  • Travel

    75mm

  • Fork

    SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt Axle / Remote Lock Out / Alloy Steerer / 75mm Travel

  • Drive Unit

    Bosch Performance SX
    EU: 25kmh

  • Battery

    Compact Tube 400Wh

  • Display

    Bosch Purion 200

  • Charger

    2A Charger

  • Rear Derailleur

    Shimano Deore RD M6100SGS 12 Speed

  • Shifters

    Shimano Deore SL-M6100RA

  • Crankset

    FSA CK-220 170mm

  • Chainring

    FSA 38T w/Chain Guard

  • Chain

    KMC E12S

  • Cassette

    Shimano CS-M6100-12 10-51T

  • Brakes

    Shimano BR-MT200 Disc

  • Rotor

    Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm

  • Handlebar

    Syncros Welded Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount

  • Seatpost

    Syncros M3.0 / 31.6

  • Seat

    Syncros Capilano

  • Headset

    Acros / 1.5"- 1.5"
    semi integ. OD 50/61mm / ID 44/55mm

  • Hub (Front)

    Shimano HBTC50015B CL / 15x100mm

  • Hub (Rear)

    Shimano FHTC500MSB CL / 12x142mm

  • Spokes

    Black Spokes

  • Rims

    Syncros X15 Disc

  • Front Tire

    Schwalbe G-One RX Performance
    700x50C

  • Rear Tire

    Schwalbe G-One RX Performance
    700x50C

  • Pedals

    Marwi SP-827

  • Extras

    Hebie Kickstand

  • Approx weight in KG

    20.5

  • Approx weight in LBS

    45.19

  • Max. System Weight

    130kg
    The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

Geometry of SCOTT Passage 20 Slope Bike

S / 900 M / 900 L / 900
A head tube angle 68.0 ° 68.0 ° 68.0 °
B head tube length 110.0 mm 120.0 mm 130.0 mm
C top tube horizontal 580.0 mm 600.0 mm 620.0 mm
D standover height 655.0 mm 655.0 mm 670.0 mm
E BB offset -55.0 mm -55.0 mm -55.0 mm
F BB height 307.0 mm 307.0 mm 307.0 mm 0.0 mm
G wheel base 1,160.8 mm 1,182.1 mm 1,203.3 mm
H BB center to toptube center
I BB center to top of seattube 400.0 mm 440.0 mm 490.0 mm
J seat angle 75.0 ° 75.0 ° 75.0 °
K chainstay 475.0 mm 475.0 mm 475.0 mm
L reach 419.3 mm 436.8 mm 454.4 mm
M stack 599.6 mm 608.9 mm 618.2 mm
N stem length 70.0 mm 70.0 mm 70.0 mm
0 trail 96.6 mm 96.6 mm 96.6 mm

BOSCH SX - 400 WH BATTERY
